NonStopTuning Hyundai Veloster Turbo Lightweight Crank Pulley Dyno Testing

NST Veloster Turbo Dyno Testing

NST Veloster Turbo Dyno Testing

We had an opportunity to dyno test a NonStopTuning CR-Lite Crank Pulley with a naturally aspirated Hyundai Veloster NAV a couple weeks ago, and were very happy with the results.  Click here for that post.

After the positive testing with the NAV, we were excited to test with a Veloster Turbo and had the chance to do so with Jay’s white Veloster.  Much like the last Veloster we tested with, this one came to us as a bone-stock, un-modified, car… it even happened to be another white car, nicknamed 002!

NonStopTuning Hyundai Veloster Turbo- 002

NonStopTuning Hyundai Veloster Turbo- 002

NST Veloster Turbo Dyno Testing

NST Veloster Turbo Dyno Testing

Using a car with NO other performance modifications gives us a blank canvas and makes it abundantly clear that the gains we see are associated with the NST Lightweight Crank Pulley.

NonStopTuning Hyundai Veloster Turbo Crank Pulley

NonStopTuning Hyundai Veloster Turbo Crank Pulley

The NST Lite series is a designation used for pulleys that are light-weight versions of their OEM counterparts. All NST pulleys are built using High quality 6061-T6 aircraft aluminum and are easily 65% to 70% lighter than steel or cast iron OEM pulleys. Every NST pulley is hard anodized for exceptional durability and is a great item for use at the track or on the street.

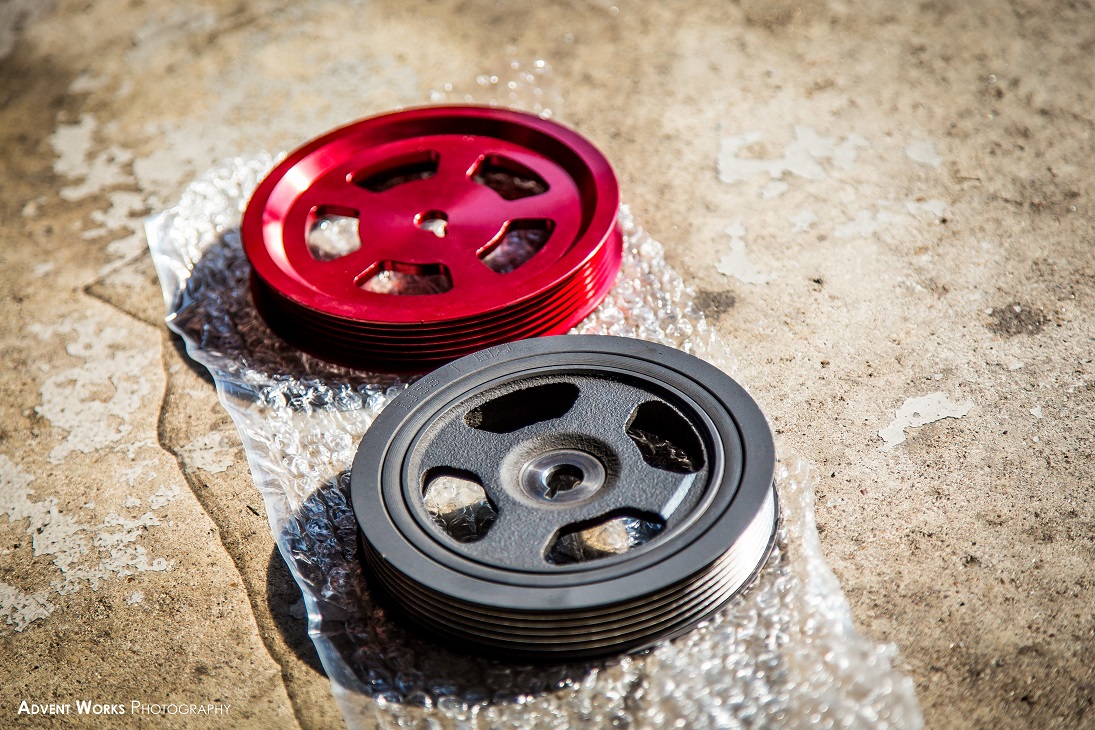

OEM Veloster Crank Pulley – 48 oz
NST CR-Lite Crank Pulley – 14 oz

The NST CR-Lite Pulley is compatible with naturally aspirated, turbocharged, or supercharged applications, and is compatible with the OEM belt. No belt change is required when this crank pulley is used.

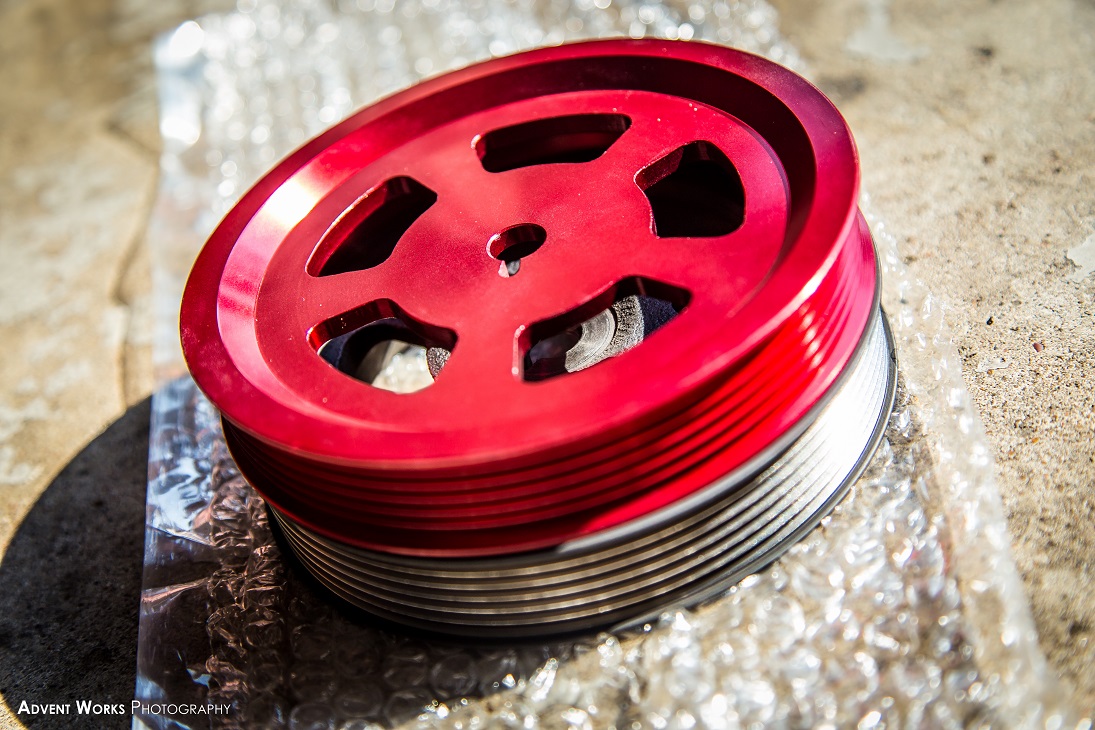

NST Veloster Turbo CR-Lite Crank Pulley

NST Veloster Turbo CR-Lite Crank Pulley

NonStopTuning Hyundai Veloster Turbo CR-Lite Crank Pulley

NonStopTuning Hyundai Veloster Turbo CR-Lite Crank Pulley

Our test car did better in terms of horsepower, torque, and response.  The Turbo car seems to spool faster with the weight reduction provided by the NST CR-Lite Crank Pulley and benefits from better horsepower and torque at the low, mid, and high range of the power band.

All before and after dynos were performed in fourth gear, using the same dyno on the same day, and NO other performance modifications were made.

NST CR-Lite Crank Pulley

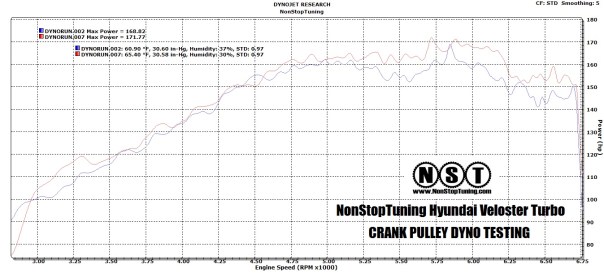

NST Hyundai Veloster Turbo CR-Lite Crank Pulley:  HP UP AT ALL RPM

NST

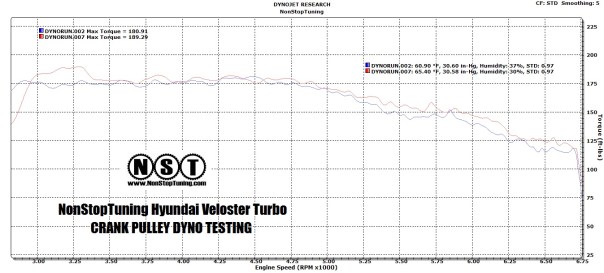

NST Hyundai Veloster Turbo CR-Lite Crank Pulley: TQ UP AT ALL RPM

NST

NST Hyundai Veloster Turbo Lightweight Crank Pulley Dyno Testing

Max horsepower went from 168 to 171, with a very nice bump in high end power, posting consistent gains of 7 to 10 horsepower after 5,000 rpm.  Max torque was more impressive with an increase from 180 to 189, with consistent gains across the entire power band.

Conclusion?  NST Pulleys improve power, torque, and response across the entire power band. If you look at the area under the power and torque curves you will notice positive gains in the low, mid, and high range when the NST Crank Pulley is used. No other modification in the same price range can offer similar gains across the entire power band. This fact makes the NST Pulley one of the best bang per buck performance modifications for the Hyundai Veloster.

NST – NonStopTuning
http://www.NonStopTuning.com
